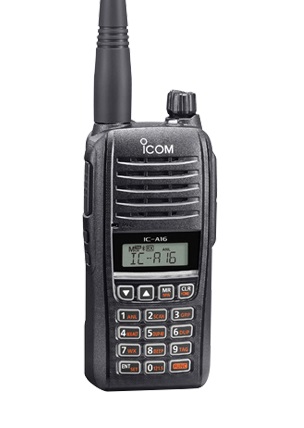

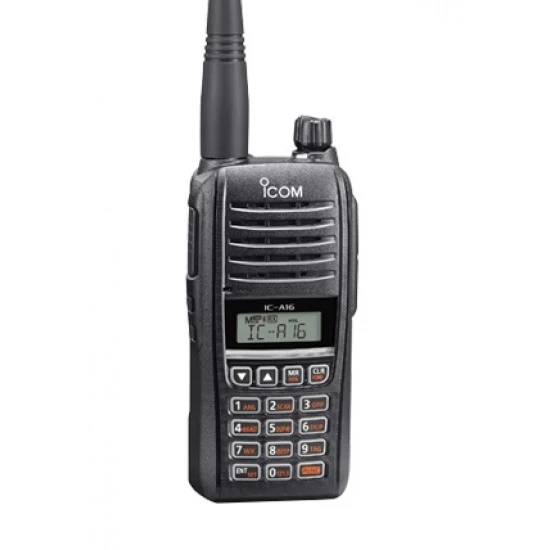

Icom IC-A16E VHF Airband Handheld Radio
Certified for NZ and Australia.
Icom ICA16 Handheld
8.33/25 kHz Ground to Air Radio with Class Leading 1500mW Powerful Audio
- 8.33 kHz and 25 kHz channel spacing
- 1500 mW loud audio provides clear communications
- 6W (PEP) output power
- Long Battery Hours
- Compact, waterproof durable body
- Auto Noise Limiter (ANL) for noise reduction
- Internal VOX capability
- 200 memory channels with 8 character names
- BNC type antenna connector
Specifications:
Frequency range TX/RX : 118.000–136.992 MHz
Number of memory channels 200 channels
Channel spacing 8.33 kHz/25 kHz
Type of emission 6K80A3E, 5K00A3E
Power supply requirement 7.2 V DC
Current drain (approximate) TX High 1.8 A
Rx Stand-by 65 mA typical
Max. audio 650 mA
Antenna impedance 50 Ω (BNC type antenna connector)
Operating temperature range –20°C to +55°C
Dimensions (W×H×D)
(Projections not included) 52.2 × 111.8 × 34.1 mm (with BP-280)
Weight (approximate) 257 g (with BP-280)
Transmitter
IC-A16E
Output power (at 7.2 V DC) 6.0 W (PEP), 1.8 W (carrier)
Audio harmonic distortion Less than 10% (at 85% + 3 dB modulation)
Harmonics spurious emissions Less than –36 dBm
(Except for operating frequency ±1 MHz.)
Frequency stability ±1 ppm
Receiver
IC-A16E
Intermediate frequencies
46.35 MHz (1st), 450 kHz (2nd)
Sensitivity Less than 0 dBμ
(at 12 dB SINAD with CCITT)
Squelch sensitivity (Threshold) Less than 0 dBμ
Spurious response More than 70 dB
Ham and noise More than 40 dB (at 90% modulation)
Audio output power INT SP 1500 mW typical
EXT SP More than 350 mW
(AM 8 Ω 60% modulation at 10% distortion)
External speaker connector 3 conductor 3.5 (d) mm
Measurements made in accordance with EN300 676-2.
Applicable U.S. Military Specifications
Standard
MIL-810 G
Method
Procedure
Low Pressure 500.5 I, II
High Temperature 501.5 I, II
Low Temperature 502.5 I, II
Temperature Shock 503.5 I-C
Solar Radiation 505.5 I
Rain Blowing/Drip 506.5 I, III
Humidity 507.5 II
Salt Fog 509.5 –
Dust Blowing 510.5 I
Immersion 512.5 I
Vibration 514.6 I
Shock 516.6 I, IV
Also meets equivalent MIL-STD-810 -C, -D, -E and -F.
Applicable IP Rating
Ingress Protection Standard
Dust and Water IP67/54
All stated specifications are subject to change without notice or obligation.
( No bluetooth)
What's in the box?
- BP-280 Battery Pack
- BC-213 Rapid Charger
- BC-123 SV AC Adapter for BC-213
- FA-B02AR Antenna
- MB-133 Belt Clip
- Hand Strap
