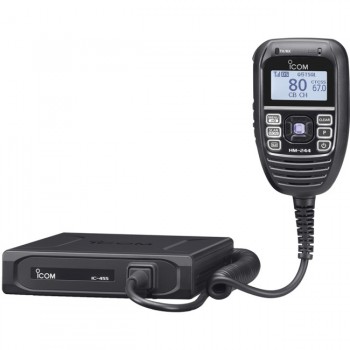

Icom IC455 80 Channel UHF CB Radio
ICOM Australia releases the all-new IC-455 Commercial Grade UHF CB Land Mobile Radio to suit all vehicles in both 12-24V DC power applications. Superseding the very popular IC-450, the latest IC-455 comes with all the features that customers have enjoyed whilst introducing some new functions that enhance the user's experience.
ICOM IC-455 is Made in Japan as a true commercial-grade UHF CB Radio that is tough, reliable and affordable.
Built with the same reliability you already know and backed by a 5-Year Warranty. New model with IP54 Water Resistance & Dust Protection
Loud, Clear & Easy-to-Use
- 80 UHF CB Channels
- 5 Watt RF Output Power
5 Watts (High) and 1 Watt (Low) selectable output power. - 12/24 Volt
- Seven-Colour Backlight LCD
The LCD Screen's colour can be changed to reflect the operating status. Different colours can be assigned to channels, and colours can be set to indicate when scanning or transmitting. - Noise Reduction, Audio Equalizer & Voice Changer
Noise reduction reduces background noise from both transmitting and receiving audio. - Voice Recorder & Instant Play Back
Record up to 10 messages of 30 seconds each, for a total of 5 minutes. - Supports Both 12 V/24 V DC Power Sources
Accepts a 12/24 V DC power source and it is suitable for most types of cars and trucks. - Dynamic Group Scan for Keeping Group Communication
Using a CTCSS or DTCS tone, this function finds an open channel for group communication. - Loud Speaker-Microphone with Auto Volume Control
The microphone monitors ambient noise levels and automatically adjusts the audio level. IP54 Water Resistance & Dust Protection
Box includes:
- IC-455 UHF
- HM-244 Speaker Microphone
- Mounting Bracket
- DC Power cable
- Mike Clip
- 5 Year Warranty
Icom specifications subject to change without notice
| IC-455 | |||
|---|---|---|---|
| Frequency coverage | CB | 476.425–477.4125 MHz | |
| RX | 400.000–520.000 MHz (RX only) | ||
| Mode | 8K50F3E | ||
| Number of channels | Max 256 channels/8 banks | ||
| Antenna impedance | 50 Ω | ||
| Input impedance (MIC) | 600 Ω | ||
| Output impedance (Audio) | 4 Ω | ||
| Intermediate frequency | 1st 49.95 MHz, 2nd 450 kHz | ||
| Operating temperature range | - 10℃ to +60℃ | ||
| Power supply voltage | 13.8 or 27.6 V DC nominal (Negative ground) | ||
| Current drain with HM-244 | 27.6 V DC | RX stand-by | 300 mA (approx.) |
| RX Maximum audio | 1000 mA (approx.) | ||
| TX (5 W output) | 1500 mA (approx.) | ||
| 13.8 V DC | RX stand-by | 500 mA | |
| RX Maximum audio | 1500 mA | ||
| TX (5 W output) | 3000 mA | ||
| Dimensions (projections not included) | Main unit | 125 (W) × 29 (H) × 160 (D) mm | |
| HM-244 | 62.1 (W) × 101.5 (H) × 30.5 (D) mm | ||
| Weight (approx.) | Main unit | 344 g | |
| Main unit with HM-244 | 535 g | ||
Transmitter
| IC-455 | |
|---|---|
| Output power | 5W / 1W (selectable) |
| Modulation system | Variable reactance frequency modulation |
| Max. frequency deviation | ±2.5 kHz |
| Frequency stability | ±2.5 ppm |
| Spurious emissions | –30 dBm max. (5 W: 67 dBc) |
| Adjacent channel power | –16 dBm max. (5 W: 53 dBc) |
| Audio harmonic distortion | 1% typical (60% deviation) |
| Residual modulation | 40 dB typical |
| Limiting characteristic of modulator | 70 to 100% of maximum deviation |
Receiver
[CB (476.425–477.4125 MHz)]
| IC-455 | |
|---|---|
| Sensitivity (12 dB SINAD): | 0.22 μV typical |
| Squelch sensitivity | 0.2 μV typical (Threshold) |
| Hum and noise | 48 dB typical |
| Intermodulation rejection ratio | 72 dB typical |
| Spurious response rejection ratio | 80 dB typical |
| Adjacent channel selectivity | 68 dB typical |
| Conducted spurious radiation | –57 dBm max. (9 kHz–1.0 GHz) –47 dBm max. (1.0 GHz–4.0 GHz) |
| Audio output power | 5.0 W max. at 10% distortion with 4 Ω load |
| Audio frequency response | +2 dB to −8 dB of 6 dB/octave from 300 Hz to 2550 Hz |
[RX (400.000–520.000 MHz)] (Except CB (476.425–477.4125 MHz))
| IC-455 | |
|---|---|
| Sensitivity (12 dB SINAD) | 0.25 μV typical |
| Hum and noise: | 45 dB typical |
| Conducted spurious radiation | –57 dBm max. (9 kHz–1.0 GHz) –47 dBm max. (1.0 GHz–4.0 GHz) |
| Audio frequency response | +2 dB to –8 dB of 6 dB/octave from 300 Hz to 2550 Hz |
