- Brand: Cel-Fi
- Product Code: Cel-fi Roam CD8195B
- Shipping Cost: $15.00

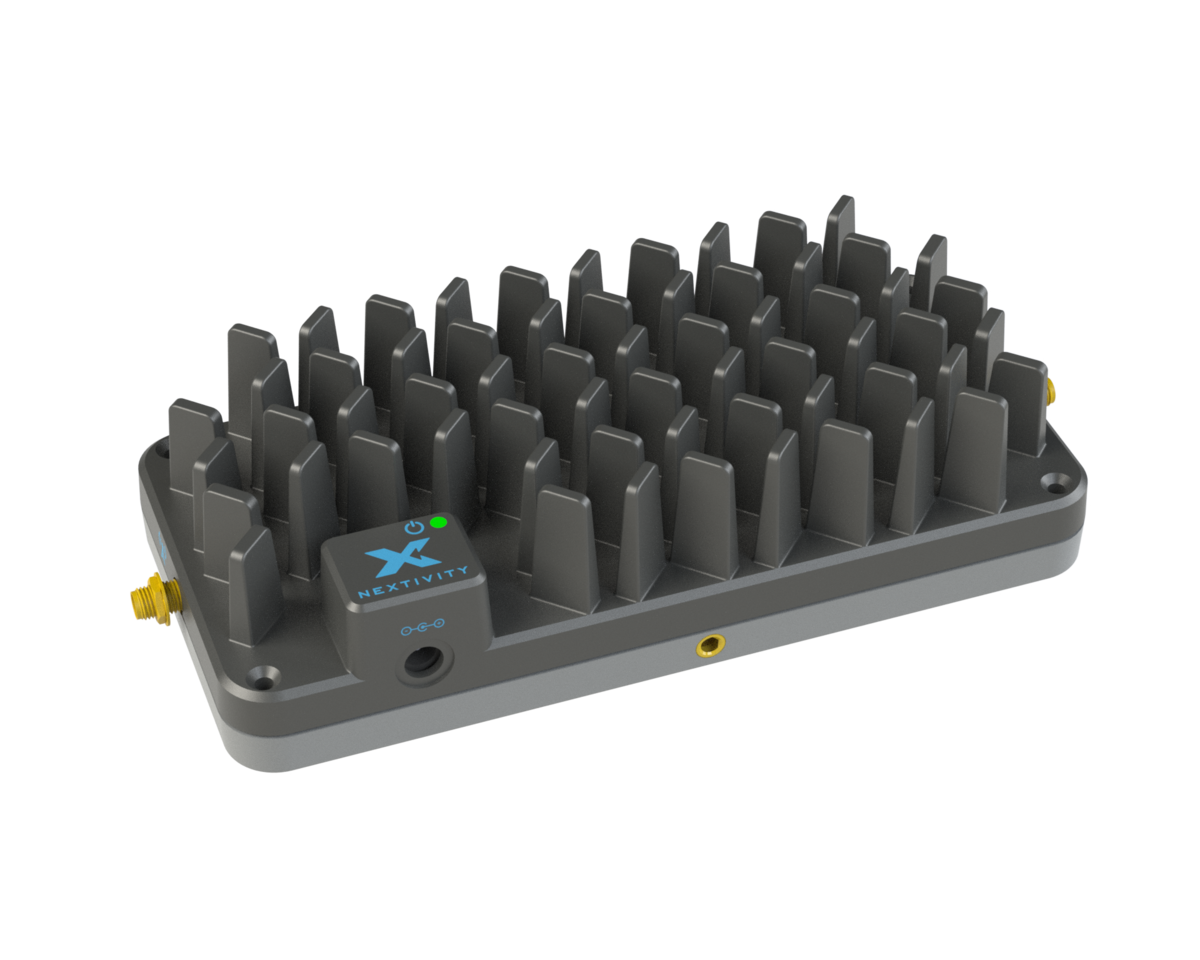

CEL-FI Roam R41 Repeater Booster + RFI Black CD8195B Antenna
The CEL-FI ROAM R41 is the next-generation mobile cellular coverage solution that delivers reliable 3G, 4G, and 5G connectivity.
NEW! CEL-FI ROAM R41 is the next-generation mobile cellular coverage solution that delivers reliable 3G, 4G, and 5G connectivity inside vehicles and boats.
With the latest Nextivity propriety IntelliBoost chip, ROAM R41 offers enterprise-grade performance to solve poor coverage and enable dependable calling, texting, and streaming on the move.
The system features plug-and-play operation for quick and easy setup, improving connectivity in any car, truck, RV, or boat within minutes. ROAM R41 also supports carrier switching through the Nextivity WAVE App for iOS and Android devices.
Supports Telstra & Optus network. Only 1 network can be selected at a time.
Cel-Fi works best with RFI antennas (Made in Melbourne).

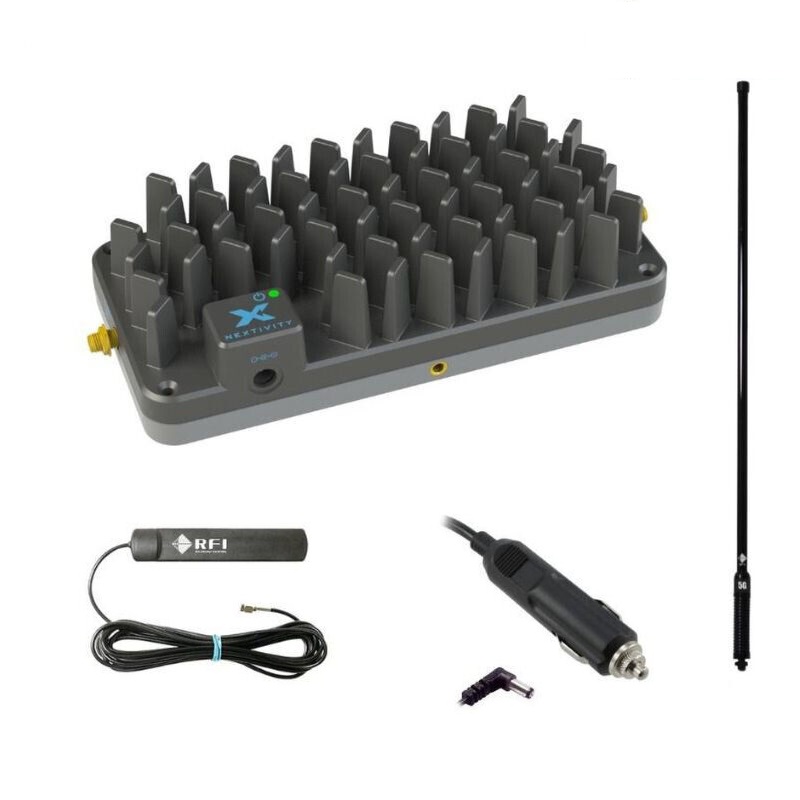

In the Box:
- 1 x CEL-FI ROAM R41
- 1 x DC Cigarette lighter power lead
- 1 x T5-4M-SMA internal antenna
- 1 x RFI CD8195B 6.5dBi antenna (non-removable whip)
CD8195B Antenna
CD8195 5G LTE antenna covers the 4G LTE bands (698-960 MHz, 1710-2170 MHz, and 2300-2700 MHz) and the new 5G LTE band (3400-3800 MHz).It is ideal for use with cellular modems & active repeaters, especially when signal is poor.
The outstanding performance of the CD8100 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.
Features:
- Ideal for all new 4G/5G networks with true multi-band coverage
- Patented PCB-based collinear design offering the ultimate in pattern and gaining stability
- High 6.5dBi gain across all bands suiting fringe and rural applications
- Length - 92cm
- Includes 5m cable with SMA connector
Whats Included?
1x CF-R41 - Cel-Fi Roam R41 repeater
1 x12V power supply
1 x Stick-on paddle antenna
1x RFI CD8195B bull bar mount antenna with spring base & cable
Roam R41 Specification Sheet
SPECIFICATIONS
| Weight [kg] | 0.49 |
| Depth [mm] | 79.8 |
| Height [mm] | 44 |
| Brand | Cel-Fi |
| IP Rating | IPX0 |
| Operating Temperature Range [°C] | 0-60 |
| Length [mm] | 170.7 |
| Frequency | Multiband |
| RF Connectors | SMA (female) on all ports |
| RF Gain | 100dB |
| Output Impedance | 50 Ohms |
| Current Consumption | 18W |
| Technology Type | 5GNR, LTE, UMTS |
| Frequency Band | B1 – 2100MHz, B28L – 700MHz Lower, B3 – 1800MHz, B7 – 2600MHz, B8 – 900MHz |
| Mobile Network | Optus, Telstra |
RFI 89cm CD8195 6.5dBi 3G 4G 5G Cellular Vehicle Antenna (BLACK)
The new CD8195 5G LTE antennas not only cover the 3G / 4G LTE bands (698-960 MHz, 1710-2170 MHz, and 2300-2700 MHz) but now the new 5G LTE band (3400-3800 MHz).
It is ideal for use with cellular modems & active repeaters, especially when signal is poor.
The outstanding performance of the CD8100 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.
The CD8100 Series includes an integrated spring with threaded stud/nut for easy installation on vehicles.
KEY FEATURES:
- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage.
- High gain across all bands making it suiting fringe and rural applications.
| Colour | Black |
| Packaging | Retail Hang Sell Bag |
| Whip Material | Fibreglass |
| Cable And Connector | 5m RG58 low loss cable (9006) terminated with SMA male connector |
| Frequency Range | 1710-2170, 2300 - 2700, 3400 - 3800, 698 - 960 |
| Nominal impedance | 50 |
| Power w | 10 |
| Nominal Gain Dbi | 6.5 / 4.5 / 5.5 / 6.5 |
| Polarisation | Vertical |
| VSWR | <2.5:1 |
| Mounting area | 13-16mm diameter hole |
| Horizontal Beamwidth | Omni-Directional |
| Frequency MHz | 698-960 / 1710-2170 / 2300-2700 / 3400-3800 MHz |
| Length [mm] | 920 |
| Operating Temperature Range [°C] | -40 to +85 |
| Brand | RFI |
